| Fixed Satellite |  |
 |
iDirect
We offer a wide range of fixed Satellite broadband packages to serve MEA's all types of individual and corporate requirements. |
|
|

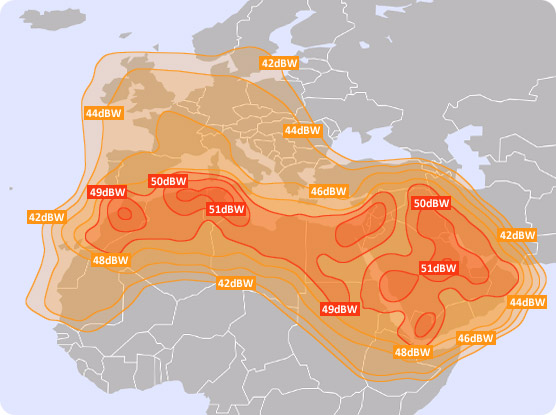

| BADR-4 BADR-4 offers a wide range of satellite communications services with the highest power level and the widest coverage over the Arab countries.
Co-located with the rest of the BADR constellation of satellites at Arabsat's 26° East longitude video neighborhood, BADR-4 iDirect service is available from Morocco and Algeria to the Arabian Gulf.
SERVICE
 Service available in the following contention ratios: 1:5, 1:10, 1:20, 1:30
Multiple user support on a single terminal
EQUIPMENT
BUC Type: 3 Watt Extended
LNB: High band LO: 11300
Antenna Size: Typical 1.2 meter
iDirect Modems Supported: 3000, 5000
Interface: 10/100 Base-T Ethernet
Protocols: TCP/IP, UDP, ICMP, IGMP, RIPv2, NAT, DHCP
| APPLICATIONS
Broadband Internet access
Corporate Networks
Video / Distance Learning
Rural telephony / VOIP
|
|
|
|

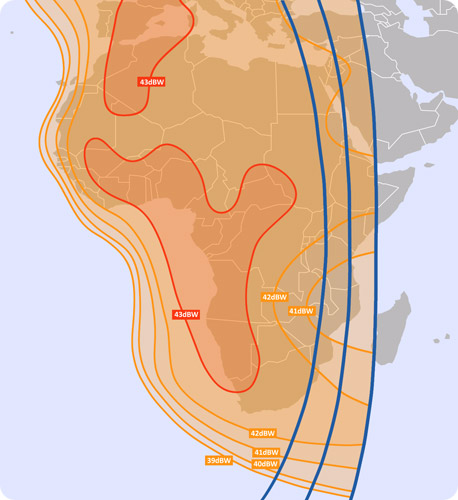

NSS10 / AMC12 Delivering high-powered C-band capacity to Africa. The satellite's advanced design and high-powered C-band beams are capable of providing service with higher data throughput to smaller antennas with unsurpassed levels of reliability - even in areas of high rain zones.
Through NSS-10's Africa Hemi beam delivering coverage of most of the African continent, as well as Europe and parts of the Middle East.
SERVICE
Service available in the following contention ratios: 1:5, 1:10, 1:20, 1:30
Multiple user support on a single terminal
EQUIPMENT
BUC Type: 5 Watt C Band, supporting up to 1MB upload
LNB: C Band LO: 5150
Antenna Size: 1.8 meter
iDirect Modems Supported: 3000, 5000
Interface: 10/100 Base-T Ethernet
Protocols: TCP/IP, UDP, ICMP, IGMP, RIPv2, NAT, DHCP
| APPLICATIONS
Broadband Internet access
Corporate Networks
Video / Distance Learning
Rural telephony / VOIP
|
|
|
|
|

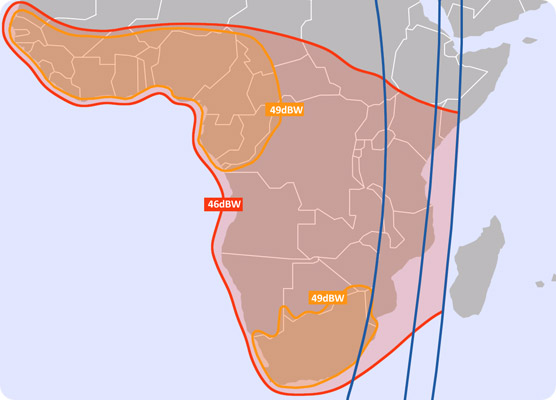

Telstar 11N Delivering high-powered Ku band capacity to Africa. Lunasat is utilizing the new idirect
Evolution X3t that features a highly efficient implementation of the DVB-S2 standard.
Evolution X3 is ideally suited for broadband requirements such as Internet and VPN access to enterprise networks, as well as real-time VoIP and video conferencing.
|
|
|
